PROKontrol 3/2 and 5/2 NAMUR Pilot Valves


3/2 and 5/2 NAMUR pilot valves for pneumatic rotary actuators

  • 3/2- bzw. 5/2-way solenoid valve
  • Coil 24 V DC, Optionally 240 V AC
  • Control pressure 2…10 bar
  • NAMUR interface
  • G 1/4″ connection
  • Protection class IP65
  • ATEX Zones -/1/21/2/22

You can download the data sheet here.

Short Description

The PROKontrol standard offering on solenoid pilot valves includes general purpose as also ATEX rated 3/2 and 5/2 way solenoid valves.

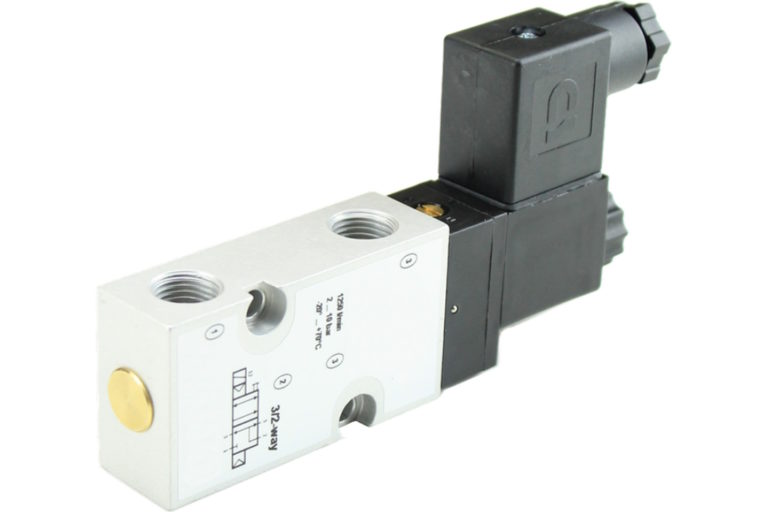

The pilot valve consists of the valve block and a 24VDC coil. The pilot valve includes a manual override, air spring and spring chamber ventilation. The pilot valve is electrified via the coil.

The ATEX rated valves include as a standard a 3m fixed cable. Other cable lengths and coil currents are available on request.
