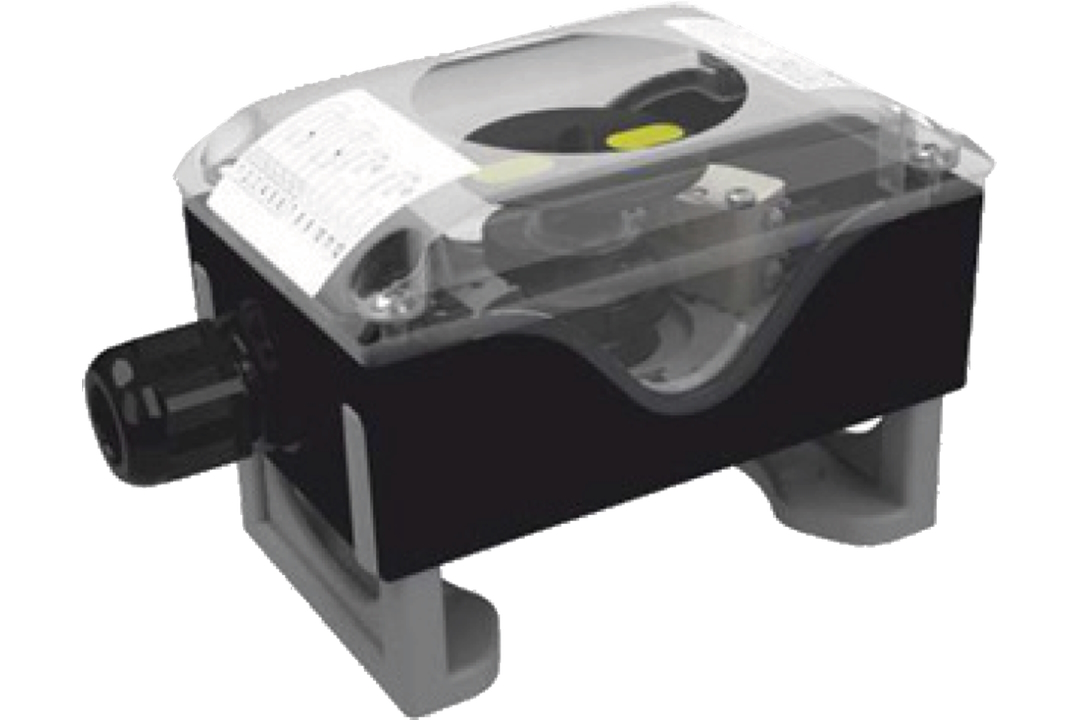

PROKontrol Limit Switch Boxes

Overview

Limit switch boxes for pneumatic rotary actuators

  • Mechanial switch / inductive
  • Function N.O. / N.C.
  • Protection class IP66 / IP67
  • ATEX Zones -/1/2/21/22
  • SIL Levels – / SIL 1-3
  • Visual position indicator
  • Adjustable mounting bracket

You can download the data sheet here.

Short Description

The PROKontrol standard offering for limit switch boxes include a mechanical and inductive general purpose limit switch box and one mechanical and two inductive ATEX rated limit switch boxes.

The limit switch boxes are mounted on the top flange of a pneumatic actuater and provide a signal feedback on the valve position (open / closed), which can be tied into the customers control system.

Further, also UL-certified versions of the above or equivalent limit switch boxes are available on request.

PROKontrol automation components are usually available from stock at PROKOSCH. Other customer-specific automation components are obtained on order.
